Application:

HT series low consistency cleaner is suitable for cleaning fiber suspen- sion with the consistency of 0.4-1.2%. It can efficiently

remove light impurities, hot melt impurities, heavy impurities, pulp rejects etc. In addition, it can also remove foam plastics, chips

fragments., ink particles and air efficiently,which results in purifying stock in the approach system prior to paper machine.

It can make coarse screen in the recycled paper fiber efficiently,simplify the processing procedures and reduce power consumption.

Design Features:

It consists of tangent inlet, accept outlet, cylindrical up-part with a plug-in deaeration tube, middle part of cone-type separate tube,

nozzle or lower part of reject discharge controller, etc.

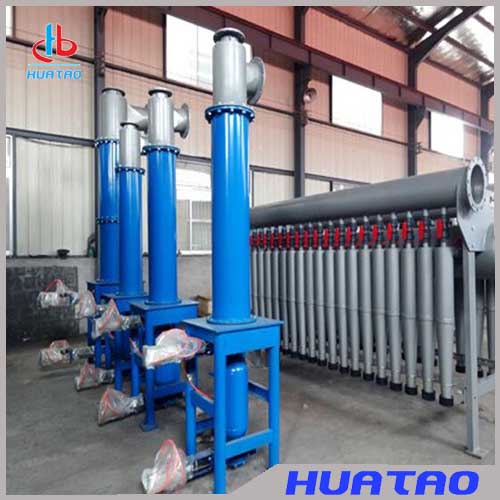

It is a hydrocyclone cleaner. Under the pressure，stock enters the cleaner tangentially and generates high-speed vortex in the cone-tye separate tube, by which.the vortex whose direction of axes near the wall of the separate tube will be directed to the ends of the cone, and the heavier impurities are fung against the wall of the cleaner and discharged at nozzle or by reject controller.The accepts gather in the center of the separate tube to form a main stock flowing from compared with ordinary

L. C. cleaner. It features with a longer separate cone and incorporates a centered deaeration tube，which results in higher effIciency in removing impurities as well as being able to remove light impurities，hot melt ma- terial and air.
